Skid-mounted Type Hydrogen Generator

H2 Capacity: 30Nm3/h-1000Nm3/h- X ；

Operating pressure: up to 3.2Mpa;

H2 purity: up to 99.9999%

Dew point: ≦-60℃

Power consumption(DC):4.4+/-0.2 KWh/Nm³H2

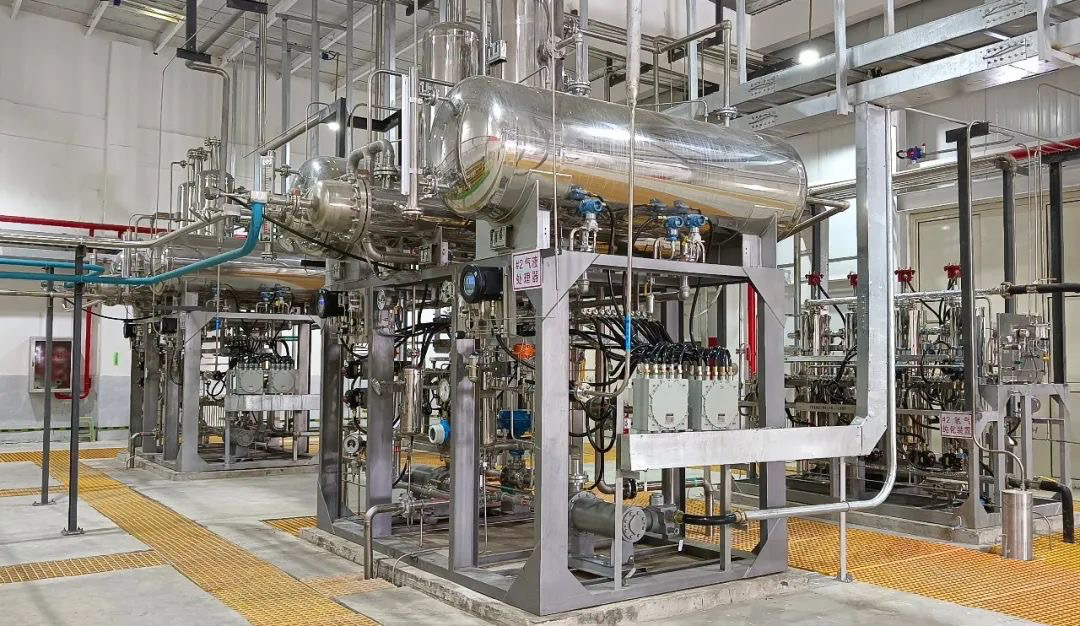

All the piping and cabling within the skid-mounted structure are carefully polished. The electrolyzer adopts a bipolar pressure filter structure. The good quality seal gasket ensures no leakage from the electrolyzer whether in hot or cold conditions. The gas-lye treater is skid-mounted type with simple process flow, easy to install, operate and maintain. The H2 generator is automatically controlled through PLC programming, with high reliability and remote control. Operator-friendly HMI (Optional) makes the operation safe and convenient.
